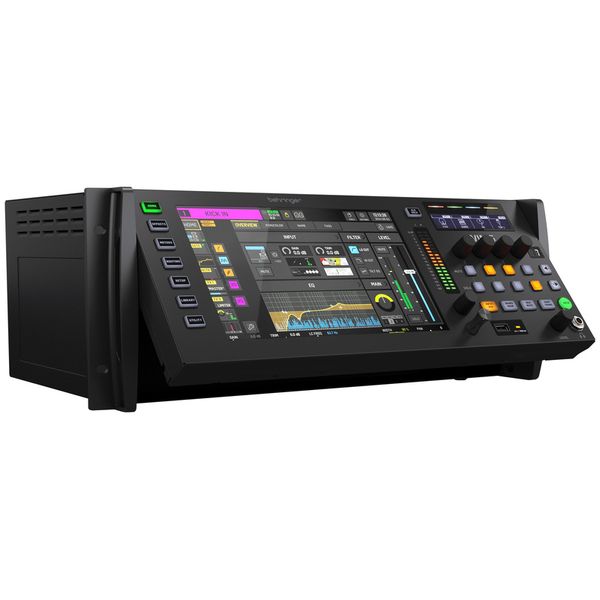

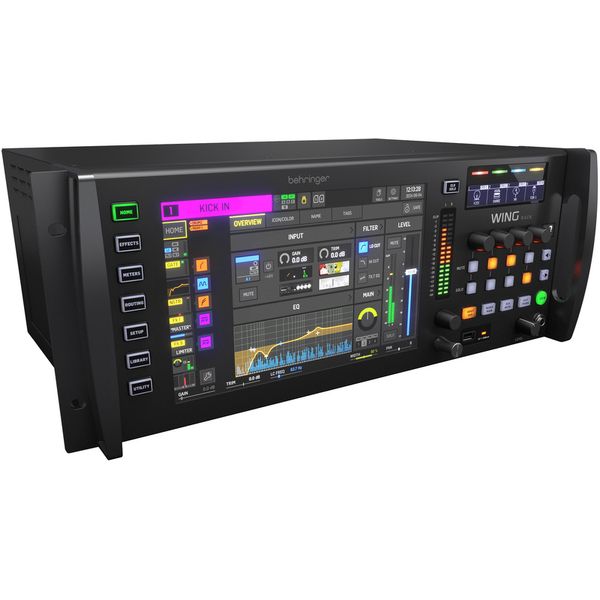

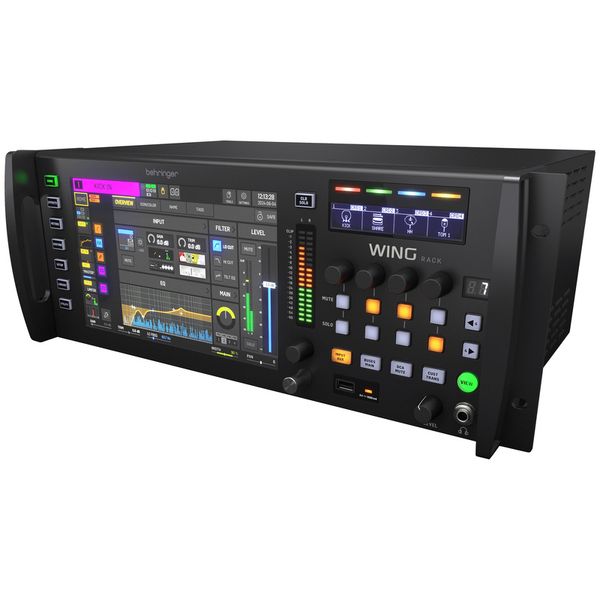

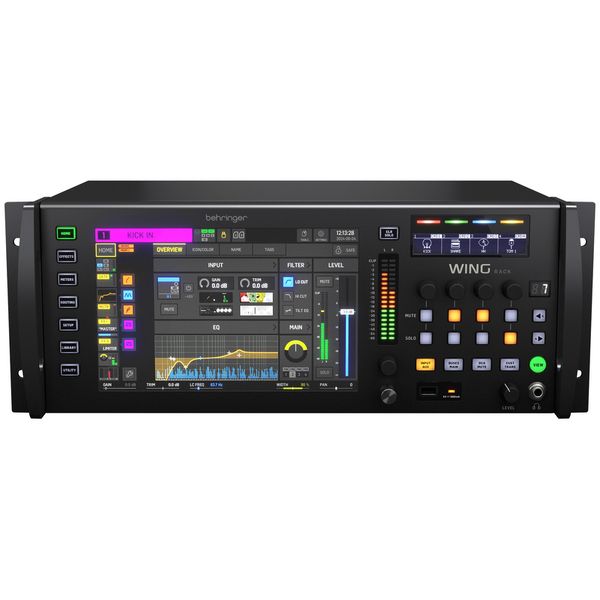

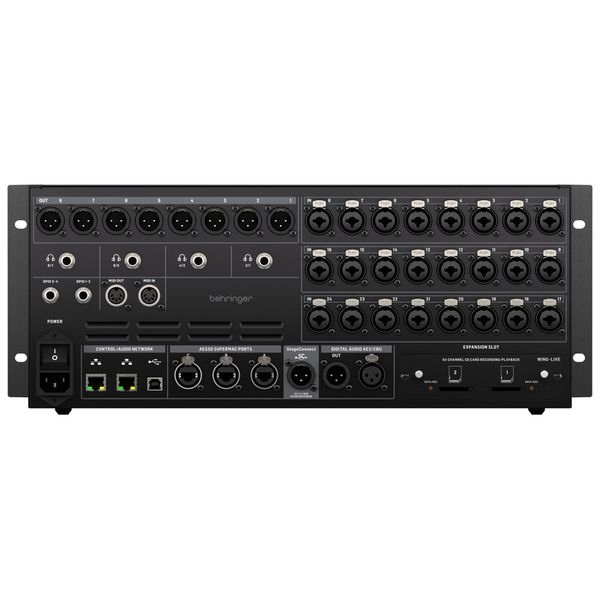

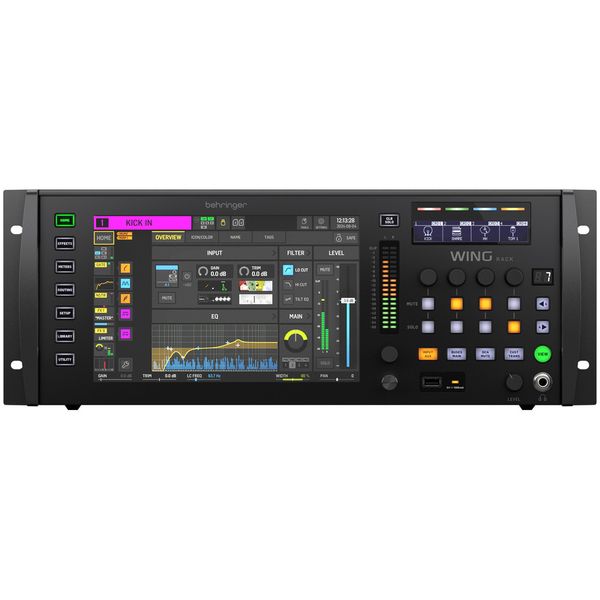

48-Channel Rack Mount Full Stereo Digital Mixer

• Fully compatible with Behringer X32/Midas M32 consoles and stageboxes
• 28 Buses: 16 stereo aux, 8 stereo matrices, 4 stereo mains
• 8 Buttons and 4 encoders for standard mixing
• 10.1″ Multi-touch display with adjustable angle
• 24 Midas PRO microphone preamplifiers
• 3 AES50 ports: 144 inputs and outputs
• Built-in USB audio/MIDI interface for 48 audio channels
• Dual SD card live recorder/player with up to 64 tracks
• Internal AoIP module can expand Ethernet ports with optional 64-channel inputs and outputs to Dante and Waves SoundGrid networks
• 16 True stereo effects processors
• 3 Plug-in slots for gate, dynamics and EQ per channel
• 40 Stereo input channels with 5 variable plug-in slots each
• Stereo aux input channels with one FX insert slot and 4-band parametric EQ
• 8 Mute groups and 8 DCAs
• 2 Ethernet ports with built-in switch for networked remote control and optional AoIP via Waves SoundGrid and Dante
• Rear expansion slot for optional 64-channel audio interface and network expansion cards
• StageConnect host interface for sharing up to 32 channels in both directions
• 4 Programmable GPIOs
• 5-Pin MIDI In and Out
• 4 Headphone outputs
• DAW remote control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot
• WING-Q and WING-Edit software for desktop and mobile
• 19″ Rack installation with 4 U
• Dimensions (W x H x D): 486 x 183 x 326 mm
• Weight: 9.4 kg
