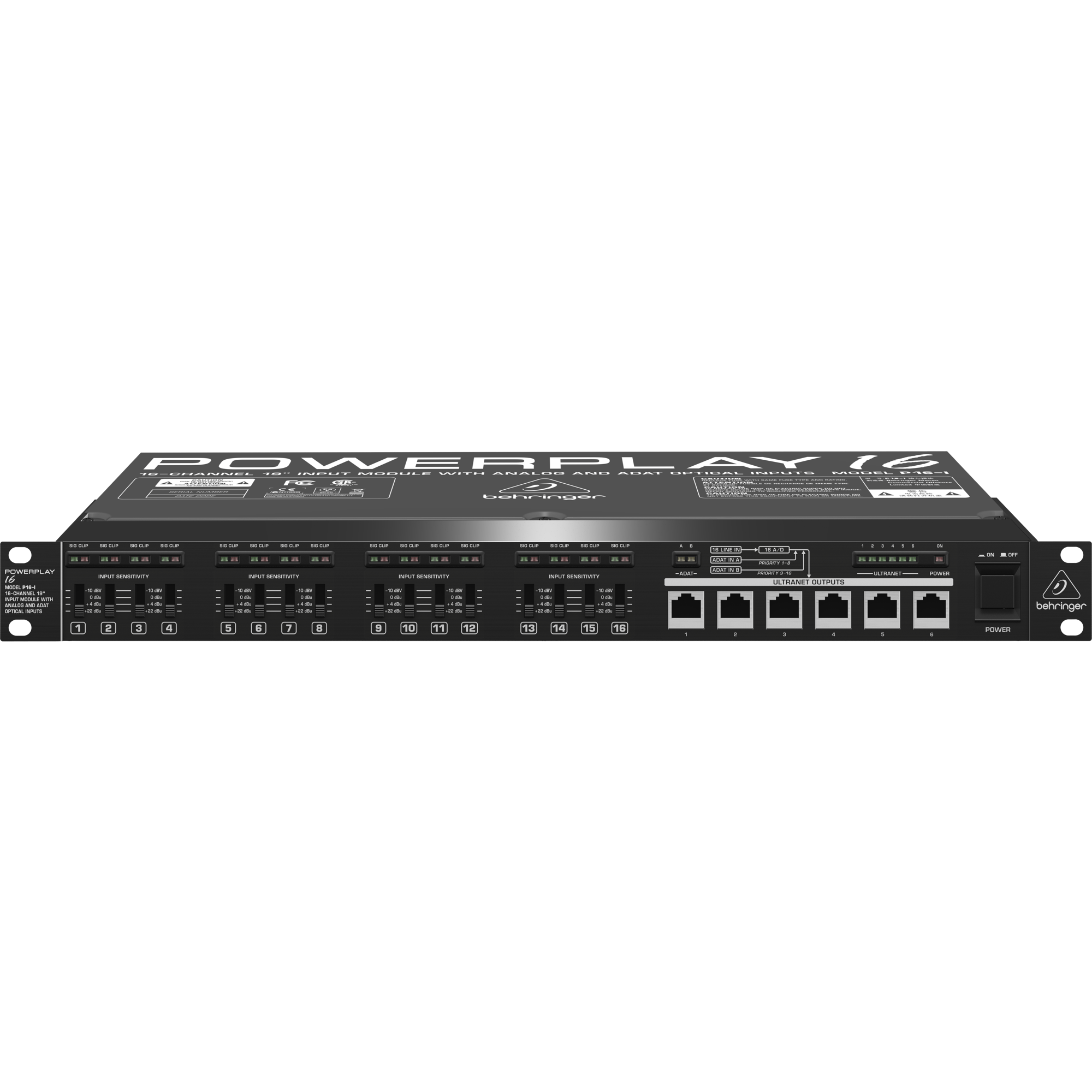

POWERPLAY P16-I

16-Channel 19” Input Module with Analog and ADAT Optical Inputs

The POWERPLAY P16 system is the easy and affordable way to give live or recording musicians/vocalists what they really want – “more me!” Part of the P16 Personal Monitoring System, the P16-I input module can be used with any analog source, and convert up to 16 analog inputs into 24-bit digital audio to send to your P16-M Personal Monitoring Mixers. The P16-I is also equipped with ADAT optical inputs that auto-detect and give priority to incoming signals.

Fast and easy to set up, a basic system can be installed and configured in a matter of minutes – and the system can be expanded to adapt to changing needs. The POWERPLAY P16 Personal Monitoring System puts total control of the monitor mix into the artist’s hands, and when they can hear exactly what they want and need to hear – their best performance is unleashed!

ADAT-Ready

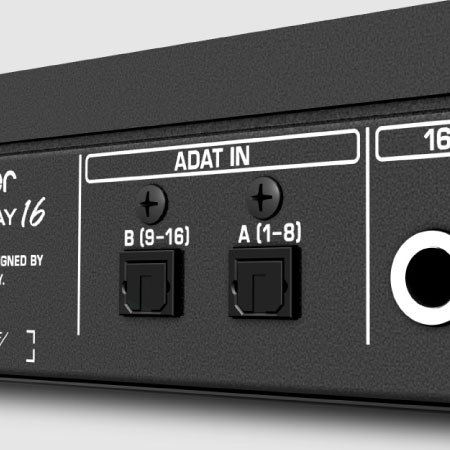

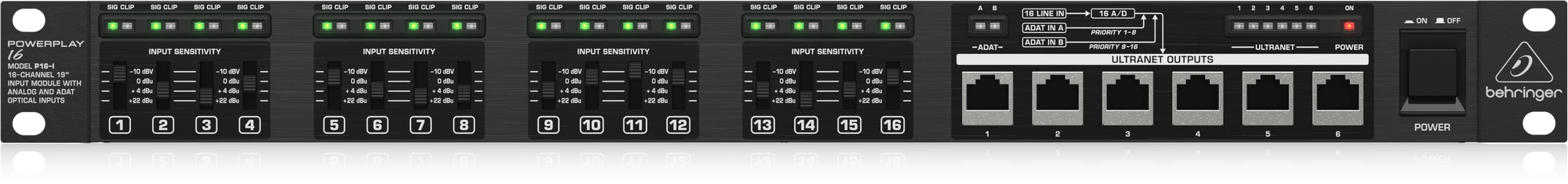

The P16-I includes a 2 x 8-channel ADAT optical input with auto detect and priority select for use with our existing ADAT equipment. Additionally, 16 balanced, high-headroom TRS audio inputs can be employed to send audio from analog outputs to your P16-Ms. You can choose from 4 gain positions per channel via a convenient onboard switch, and visually monitor by means of the status LEDs on each channel. Sample rates of 44.1 or 48 kHz are supported by the digital inputs, providing ultra-low latency of less than 1 millisecond. Standard Cat 5e cabling delivers power and signals for up to 6 P16-M Personal Monitoring Mixers, or you can use the included external supplies with each P16-M. Plus, the P16-I features an internal auto-ranging power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response and low power consumption

.
