Yamaha HS4 Active 4.5" 2-Way Studio Monitors

Yamaha HS4 Active 4.5" 2-Way Studio Monitors - Image 2

Description

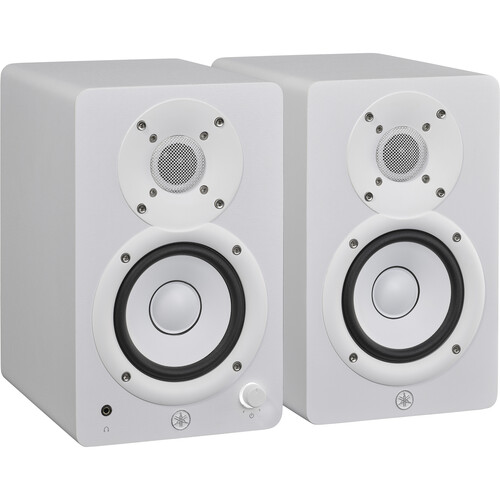

Refining the essence of the respected HS series speakers in a more compact, creator-friendly housing, the white HS4 Studio Monitors from Yamaha are two speakers, one active that powers both speakers, which have 2-way nearfield monitors that provide a wide and accurate frequency response. Designed to deliver uncompromising audio quality for creatives with limited space, the HS4 monitors excel in applications such as music production and video editing.

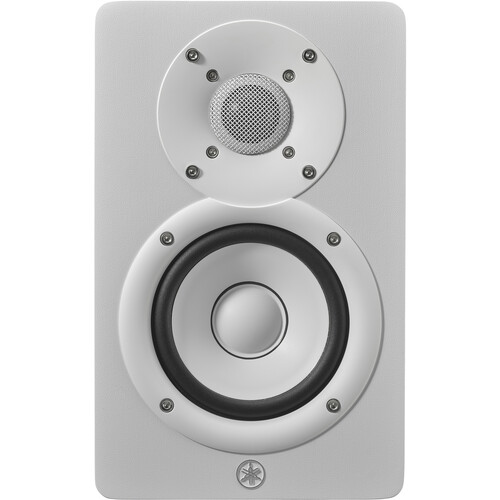

The HS4 sports a 1″ dome tweeter and a 4.5″ cone woofer fed by a 26W amplifier. The rear panel features 3-way room correction trim switches for boosting low frequencies and attenuating or boosting high frequencies, letting you quickly tune your speakers for your unique acoustic environment, while volume control is available on the front panel. XLR-1/4″ combo, stereo 3.5mm, and stereo RCA inputs provide balanced and unbalanced connection options, while a dedicated front-panel 3.5mm headphone output lets you quickly switch between monitors and headphones for mixing reference or in-room recording. The HS4 studio monitors include a speaker cable, a stereo 3.5mm to RCA cable, and eight antislip pads.

About the HS Series

Ever since the 1970s, the iconic white woofer and signature sound of Yamaha’s nearfield reference monitors have become a genuine industry standard for a reason—their accuracy. Unlike studio monitors with added bass or treble frequencies, which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process.

By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha’s speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business.

True to the Original

The HS4 continues the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers are comprised of carefully selected parts such as a high-performance Class-D amp, highly resilient MDF cabinets, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size.

They also feature proprietary Twisted Flare Port technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That’s the secret to why the HS4 delivers outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any coloring of the original sound.

I/O and Controls to Fit Any Use Case

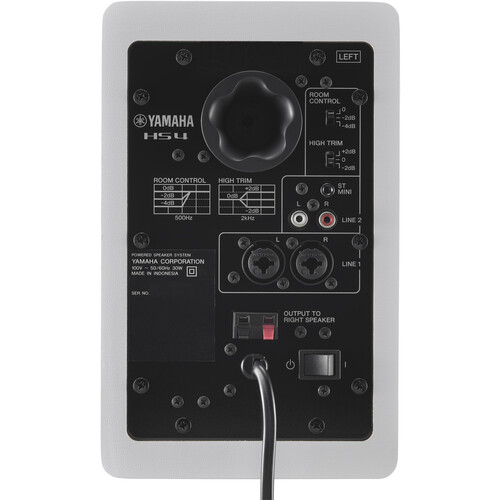

The rear panel of the HS4 is equipped with combination XLR-1/4″ TRS, RCA, and 3.5mm jacks, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features—power button, volume knob, and headphone jack—are located in the front for easy access.

Optimal Sound Tailored to Your Environment

The sound produced by speakers is sometimes affected by the surrounding environment. The rear panels of the HS4 are equipped with Room Control and High Trim functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

Compact and Portable

The compact size of the HS4 is made possible thanks to the highly efficient Class-D amp. Using one amp for two speakers has enabled Yamaha to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

Yamaha HS4 Active 4.5″ 2-Way Studio Monitors

Key Specs

Monitor Type & Configuration	Active 2-Way
Total Power Output	26 W per Monitor
Tweeter	1x 1″ / 25.4 mm Dome
Woofer	1x 4.5″ / 11.4 cm Cone
Frequency Range	83 Hz to 20 kHz (-3 dB) 60 Hz to 22 kHz (-10 dB)
Audio I/O	2x Combo XLR-1/4″ TRS Balanced Mic/Line Input (20 Kilohms) 1x 1/8″ / 3.5 mm TRS Unbalanced Line Input (10 Kilohms) 1x Stereo 2RCA Unbalanced Line Input (10 Kilohms) 1x 1/8″ / 3.5 mm TRS Speaker Input 1x 1/8″ / 3.5 mm TRS Headphone Output 1x Binding Post Pair Speaker Output
Digital Audio I/O	No
Network I/O	No
Wireless	No

Number of Included Monitors	Stereo Pair
Enclosure	Bass-Reflex/Ported
Total Power Output	26 W per Monitor

Drivers per Monitor

Tweeter	1x 1″ / 25.4 mm Dome
Woofer	1x 4.5″ / 11.4 cm Cone
Amplifiers	Full-Range: 26 W Class-D

Performance

Frequency Range	83 Hz to 20 kHz (-3 dB) 60 Hz to 22 kHz (-10 dB)
Maximum Sound Pressure Level (SPL)	102 dB (Peak)
Maximum Input Level	+20 dBu (Balanced) +6 dBu (Unbalanced)

Signal Processing

EQ	1x LF Shelf: 0 to +4 dB at 500 Hz (2 dB Increments) 1x HF Shelf: 2 to -2 dB at 2 kHz (2 dB Increments)
Filters	No
Crossover Frequency	2.3 kHz
Phase Adjustment	No

Connectivity

Audio I/O	2x Combo XLR-1/4″ TRS Balanced Mic/Line Input (20 Kilohms) 1x 1/8″ / 3.5 mm TRS Unbalanced Line Input (10 Kilohms) 1x Stereo 2RCA Unbalanced Line Input (10 Kilohms) 1x 1/8″ / 3.5 mm TRS Speaker Input 1x 1/8″ / 3.5 mm TRS Headphone Output 1x Binding Post Pair Speaker Output
Digital Audio I/O	No
Network I/O	No
USB	No
Wireless	No
Mobile App Compatible	No

Power

AC Input Power	100 to 240 VAC, 50/60 Hz
Power Consumption	15 W

Physical

Color	Black
Monitor Orientation	Vertical
Enclosure Material	MDF
Dimensions (W x H x D)	5.9 x 9.4 x 8.4″ / 15 x 23.9 x 21.3 cm (with Amplifier) 5.2 x 8.8 x 7″ / 13.2 x 22.4 x 17.8 cm (without Amplifier)
Weight	8.2 lb / 3.7 kg (with Amplifier) 6.8 lb / 3.1 kg (without Amplifier)

Packaging Info

Package Weight	18.665 lb
Box Dimensions (LxWxH)	14.9 x 13.1 x 11.8″
