Yamaha HS5 Powered Studio Monitor
Yamaha HS5 Powered Studio Monitor - Image 2
Yamaha HS5 Powered Studio Monitor - Image 3
Yamaha HS5 Powered Studio Monitor - Image 4
Yamaha HS5 Powered Studio Monitor - Image 5
Yamaha HS5 Powered Studio Monitor - Image 6
Yamaha HS5 Powered Studio Monitor - Image 7

Description

The Yamaha HS5 Active Studio Monitor is a premium-grade nearfield studio monitor featuring a 5-inch cone woofer complete with a 1-inch dome tweeter.The HS5 Studio Monitor provides an extended frequency response for optimal audio fidelity, capturing every nuance from your source audio. The high-definition audio is ideal for mixing and mastering applications, recreating your sound in extreme detail. The flat response stays true to the original sound, allowing you to achieve the best possible mix.

The black HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30 kHz. The HS5 has both an XLR and 1/4″ TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Low-Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their limits. The enclosures are constructed from dense MDF with a damped acoustic response. HS Series engineers employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha’s engineers are able to control and reduce the vortex. Through this analysis, Yamaha has arrived at a port design that reduces noise up to 6 dB

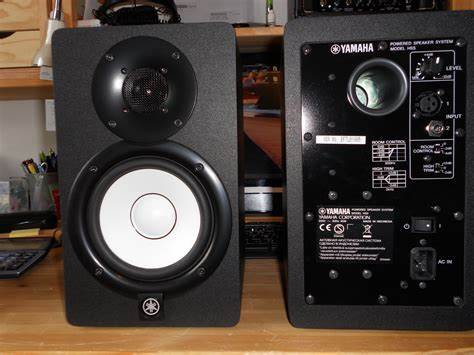

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

Yamaha HS5 Powered Studio Monitor

Categories , , Brand:
Facebook Twitter Youtube X-twitter

Key Features

  • 5-inch active studio monitor
  • Two-way bass-reflex bi-amplified nearfield monitor
  • 54Hz – 30kHz frequency response
  • Room control and high trim control for room optimisation
    Key Specifications
    Monitor Type & Configuration
    Active 2-Way
    Total Power Output
    70 W
    Tweeter
    1x 1″ / 25.4 mm Dome
    Woofer
    1x 5″ / 12.7 cm Cone
    Frequency Range
    74 Hz to 24 kHz (-3 dB)
    54 Hz to 30 kHz (-10 dB)
    Audio I/O
    1x XLR 3-Pin Balanced Input (10 Kilohms)
    1x 1/4″ TRS Balanced Input (10 Kilohms)
    Digital Audio I/O
    No
    Network I/O
    No
    Wireless
    No
    Number of Included Monitors
    Single Monitor
    Enclosure
    Bass-Reflex/Ported
    Total Power Output
    70 W
    Drivers
    Tweeter
    1x 1″ / 25.4 mm Dome
    Woofer
    1x 5″ / 12.7 cm Cone
    Amplifiers
    LF: 45 W Class-D
    HF: 25 W Class-D
    Performance
    Frequency Range
    74 Hz to 24 kHz (-3 dB)
    54 Hz to 30 kHz (-10 dB)
    Analog Input Sensitivity/Gain
    -10 dBu
    Signal Processing
    EQ
    1x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments)
    1x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments)
    Filters
    No
    Crossover Frequency
    2 kHz
    Phase Adjustment
    No
    Connectivity
    Audio I/O
    1x XLR 3-Pin Balanced Input (10 Kilohms)
    1x 1/4″ TRS Balanced Input (10 Kilohms)
    Digital Audio I/O
    No
    Network I/O
    No
    USB
    No
    Wireless
    No
    Power
    AC Input Power
    Not Specified by Manufacturer
    Power Consumption
    45 W
    Physical
    Color
    Black
    Monitor Orientation
    Vertical
    Enclosure Material
    MDF
    Mounting Points
    No
    Dimensions (W x H x D)
    6.7 x 11.2 x 8.7″ / 17 x 28.5 x 22.2 cm
    Weight
    11.7 lb / 5.3 kg
    Packaging Info
    Package Weight
    16.2 lb
    Box Dimensions (LxWxH)
    16.4 x 12 x 10.2″

Price

Original price was: ₦820,000.00.Current price is: ₦810,000.00.
